2016

UPDATES: July - January

30th July

Page on updated. So far, all full-page Vox adverts for 1963-1964. 1965 to follow.

20th July

A rolling series of updates to the site will be started this coming weekend.

Above, the Westrex factory (or at least what was to become the Westrex factory), 152 Coles Green Road, Dollis Hill, photographed in 1930. Picture from the britainfromabove website.

Westrex not only assembled AC30s but the first two hundred AC80/100s for Vox. Triumph assembled AC50s (and much else).

The main business of Westrex however was equipment for cinemas. The Pathescope Camera Works and Stoll Film Studios were close by.

15th July

A new page created, gathering together some of the stray information posted below. The relevant index page, with links to pics of surviving amps and so on .

13th July

Mullard BY100 rectifier diodes

The Mullard pricelist of August 1965 gives the price, among other things, of the Mullard BY100 rectifier diodes used in AC80/100s, AC50s, the "100W Amplifier", and the AC100 Mk2 - 11s 6d each in old money, and around £10 each today in relative terms. But Vox presumably had a better (wholesale) price.

"100W Amplifier" - zener diodes - updated

Above, close-up shots of a zener diode temporarily removed from a "100W Amplifier" (serial number in the 500s, though lacking its plate on the back panel). Made by "International Rectifier", 15v (part no. MZ15), and rated at 3/4W. Below a shot of an MZ14 zener (not used by Vox) with its original box:

Thanks to the experts in the vintage-radio.net forum for identifying the MV15 zener as being made by IR.

A design handbook for the zener diode was issued annually in the early 1960s by the International Rectifier Co. and is likely to have been available to the Burndept engineers. A subsiduary International Rectifier Co. Ltd factory was set up in Oxted, Surrey, in 1960.

The standard arrangement of zeners in the "100W Amplifier" is shown in the pic below ( AC100 serial no. 531):

The 20v zener extends across the width of the board; the 15v bridges two adjacent tags.

The scattered notes on this page relating to the "100W Amplifier" will be gathered together to form a dedicated page of their own.

12th July

The page on further updated.

The page on according to schematic OS/167 tidied up and updated.

9th July

Early Vox PA columns

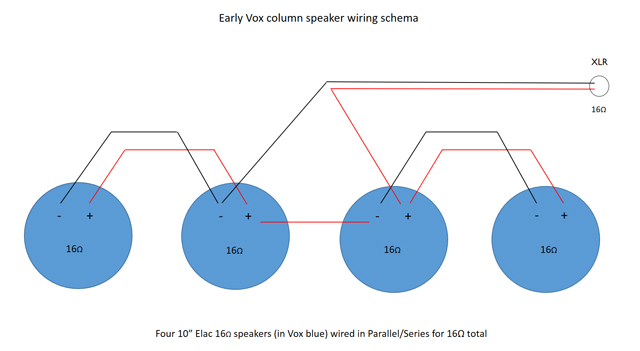

Pictured below is the wiring schema of the earliest Vox PA columns - 1963-1964. The drivers in these units are 10" Elacs, sprayed Vox blue, impedance 16ohms.

Click for a larger image

The pairs of speakers could either be run from dedicated PA amps, or from those early AC50s and AC80/100s that had twin XLR sockets. To use the two 16ohm columns together, one would set the impedance of the amp to 8ohms.

Later, 4ohm Elacs, finished in a light silver hammertone, were used, wired in series, again for a total of 16ohms.

Click for a larger image

The has been updated - further updates to follow.

8th July

More on the "100W Amplifier", June/July 1965

For the smoothing capacitor C15 in the fixed bias circuit of the "100W Amplifier", the schematic notes 0.25uf (an unusual value), 750v (an unusual rating). Hunts certainly made caps of these specifications, but evidently not in great numbers. The part actually used at the Burndept factory, however, was a blue/grey RadioSpares paper cap, 0.25uf, 1000v, well above spec., as in serial no. 531:

These came in packs of three, as in the pics below:

In later fixed bias amps - the AC100 Mk2 - one often finds RadioSpares mixed dialectic caps (polythene/foil) of 0.22uf, 600v. The change made little difference to the circuit operationally.

The zener diodes were made by Mullard - MZ20 (20v) and MZ15 (15v), clamping the bias at -35v.

6th July

A snippet on Woden transformers

In the autumn of 1964, Vox ordered from Woden a second batch of transformers - around sixty or so - for the AC80/100s then being assembled at the Westrex factory in north London. The date codes of the new units were "JV" and "KV" - September and October 1964. All had plain metal shrouds, unlike the previous batch, which had green. See the .

At the same time, Vox evidently placed an order for transformers for the AC50s destined for production at the Burndept factory in Erith. These also had plain metal tops and for the most part codes "JV" and "KV" too. Some chokes however are dated "HV" = August 1964. See the - entry for 2nd July.

So far as can be determined, the new plain-topped AC80/100 transformers went into amps with black control panels - mainly within the serial number range c. 230-300, produced late 1964 / early 1965 - but probably with a few exceptions here and there.

The black panel amps were in some ways a "holding position" at Westrex - a short final burst of activity pending the transfer of production (possibly later than intended) to the Burndept factory, where runs of AC50s had newly been set in motion.

26th June

Notes on TCC Capacitors

As mentioned lower down on this page, the higher value axial capacitors in the "100W Amplifier" were green TCC "Micromites":

Pic. from the wonderful Mullard Magic website. Note the statement of "Peak Working" and "Surge" voltages.

The caps in question, as marked on the schematic (for which, see lower down this page), are:

C1 - 8uf, preamp main filter (but 16uf always fitted in practice).

C3, C4 - *25uf, preamp cathode bypass.

C9 - 32uf, preamp main filter.

C10 - 50uf, preamp main filter (but 32uf always fitted in practice).

C14 - 8uf 150v, bias smoothing.

* cathode bypass caps were TCC "Micropack"

So far no amp has come to light with 8uf and 50uf main preamp filter caps. The values were evidently simply carried over from the "AC80/100" schematic (and no AC80/100 has come to light with these values either).

Most of the grey panel AC80/100s have blue Hunts 25uf caps for the preamp valve cathode bypass (C3 and C4). The change to the light gold 25uf TCC "Micropack" seems to have taken place between serial numbers 392 and 420.

The Hunts factory, in contrast to Dubilier and TCC (both in North Acton), was in south London - Earlsfield, not too far from Wimbledon. The works formerly belonged to (and were originally built for) the Columbia Gramophone Company.

Pic. from the Britainfromabove website. Note in the foreground a vast array of allotments, the modern equivalent of medieval strip farming.

19th June

Extract from "The Economist" magazine, volume 216, July 10th, 1965:

Click for a larger image. The upper figure of "$10 million", a good eye-catching number, is echoed in the extract from Billboard magazine, below. To support the drive to export, the Burndept factory produced many more AC80/100s than Westrex had, and as outlined in yesterday's entry lower down on this page, a large number of "100W Amplifiers" in a comparatively short space of time.

What underlay the note in the Economist, however, was the deal done at the NAMM (National Association of Music Merchants) show at the Conrad Hilton in Chicago, June 27th - July 1st, 1965. The Thomas Organ Co. ordered $2-4 million worth of Vox equipment. "Billboard" magazine, again, records the higher figure.

Extracts from "Billboard" magazine:

July 31st, 1965 "BRITISH JENNINGS LANDS BIG ORDER": "An order for microphones, amplifiers and electronic organs worth four million dollars has been placed by the Thomas Organ Co. of America with the British firm of Jennings Musical Industries."

"The order is equal to four months production for J.M.I. and means the company is completely re-planning its production line at its factory in Dartford (Kent). Extra employess are being added."

"In the last six months J.M.I's export figures reached $10million - more than all the combined orders taken by the rest of Britain's musical instrument makers. The company has also had a record first year in the home market."

October 2nd, 1965: "Thomas Organ Co. president Joe Benaron flew here [London] for the closing days of the British Musical Industry's trade fair and talked with Jennings Musical Industry's executives about further marketing of Vox products in the U.S.A. He intends to 'boost the English sound throughout America'."

<

One of the topics that may have arisen on the occasion noted above was solid state amps. Dick Denney went out to Sepulveda in late October to assess work on the Super Beatle and other US models.

18th June

Another short note, this time on schematics and production. The schematic for the early fixed bias "100W Amplifier", below, is dated 30th May 1965.

Just under three weeks later, the "AC100/2 Amplifier" sheet was drawn up - on the 17th June. Eleven days after that, on the 28th June, the addition of the brimistor is recorded.

Around three hundred "100W Amplifiers" were produced at the Burndept works in Erith - , all without the brimistor.

Although the dates given on the schematics are unlikely to correspond exactly with the start of production in the factory, the time lag between production and the drawing up of the schematics in these cases is not likely to have been great.

If we allow that production of the "100W Amplifier" lasted five or perhaps six weeks, approximately 10 per day must have rolled off the line.

The "100W Amplifier" schematic. Click for a larger image. The schematic is also on the .

Early to mid 1965 was an intense period of activity for Vox/Burndept, particularly in view of the orders received from the Thomas Organ Co. in the States, the first being in September 1964 ($1m) and the second, mid '65 ($2-4m). Both were reported in "Beat Instrumental magazine.

12th June

A short note on the filter and cathode bypass capacitors in AC80/100s. At first these were light gold-coloured Dubiliers, presumably sourced direct from the Dubilier factory in North Acton (a short step from Willesden, where Westrex assembled the chassis for Vox).

The Dubilier Condenser Company, Ducon Works, North Acton - the complex in the upper centre of the picture is the Dubilier works. Image from the fab "Britain from Above" site.

In late 1964, however, Vox/Westrex seems to have bought in from TCC - the "Telegraph Condenser Company", also based in North Acton. The TCC capacitors were generally green "Micromite", printed in beautiful, heavy, Gill sans typeface.

One also finds in amps from late 1964 main filter capacitors (100uf, 500v) made by Daly Condensers of Ealing, West London (West Lodge Works, The Green, Ealing, W5).

But TCC and Daly were used only sparingly early on (generally in black panel amps). Dubiliers were the norm, and the company continued to supply Vox when production of the AC80/100 was moved from Westrex to Burndept Electronics (in Erith) in early 1965.

Green TCCs did become standard later on though with the advent of the fixed bias "100W Amplifier" in summer 1965.

11th June

A new quasi-database page type in development for galleries of images. Interim example here.

The display will scale with browser width. Single click popup image, single click close. Images are drag-and-droppable on a Mac.

To date the page has been tested on a PC with Chrome, Firefox, IE11 and IE12, and on Mac with Safari. If you encounter any bugs, let me know .

5th June

Serial no. 663 registered here.

30th May (long entry, scroll down)

From "Beat Instrumental" magazine no. 18, October 1964. The "Million Dollar" contract, signed around a month after the Beatles had completed their first large-scale tour of America.

[correction - the deal was signed at the British Music Trade Fair, which took place in late August while the Beatles were touring.

Few AC80/100s are likely to have gone to the States however before the spring of 1965. Westrex, which made the amp throughout 1964, was not geared up for volume production, and it evidently took some time to set the Burndept factory in Erith going, the first AC80/100s emerging from its line in March/April 1965.

The earliest dateable pictures to have come to light so far of US bands with AC80/100s are those of the Byrds and Paul Revere and the Raiders at the CBS promotional show in July of that year. See below (entry for 27th March).

Piece on Tom Jennings from "Beat Instrumental no. 19, November 1964.

"We first supplied The Beatles with Vox equipment three years ago and we are still doing so. When they went to America for the first time they did a show at the famous Hollywood Bowl and found that their 50 watt amps just couldn't pierce the screams of the audience, so, they asked us to produce something even more powerful. The results are their present 100 watt monsters."

"The Beatles' tours of the States created a terrific demand for our equipment and led to our contract with the Thomas Organ Company to supply them with five million dollars worth each year."

In relation to The Beatles in the USA, Jennings presumably meant 50 watt amps at the Washington Coliseum, not the Hollywood Bowl. "Five million dollars worth each year" probably encompasses a degree of hyperbole.

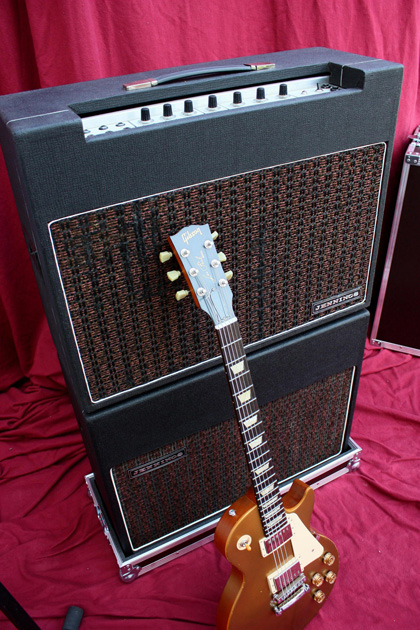

A gorgeous Jennings Electronic Industries AC40 and J50 speaker cab (2x12") pictured here. Thanks to Andreas for the pictures. The JEI pages as a whole will be updated and revamped soon.

22nd May

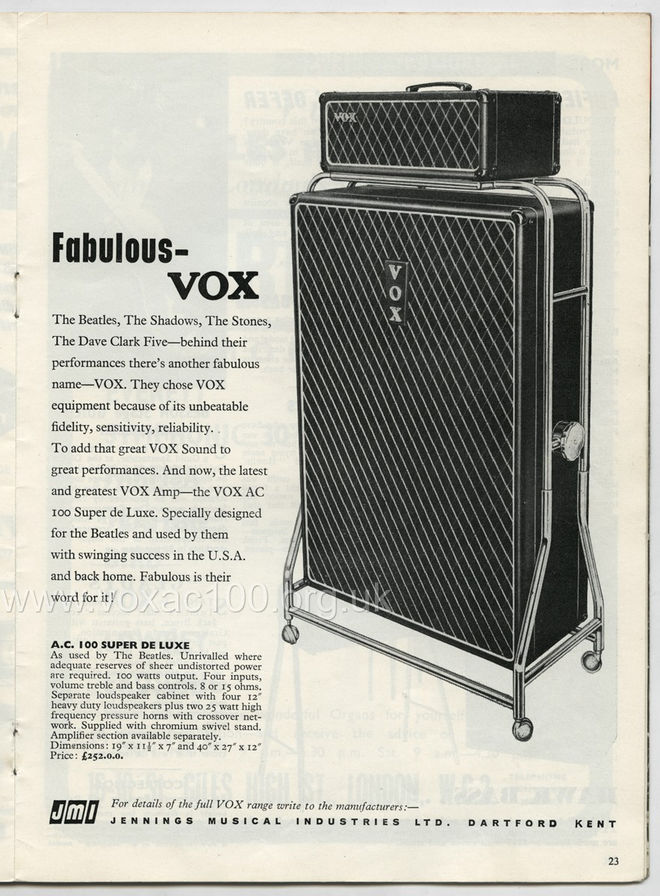

The advert above first appeared in "Beat Instrumental" magazine, April 1964 - a promotional drive for the new AC80/100, assembled by Westrex for Vox in west London. The JMI catalogue in which the amp first appears - the image below - is from much the same date. The first pricelist known that mentions the amp is from May 1964.

18th May

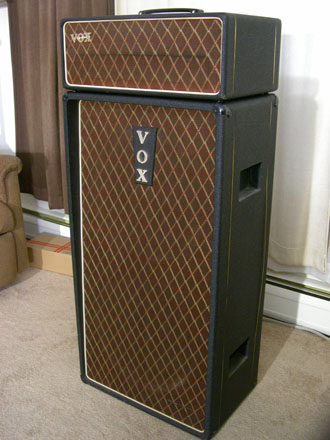

Serial no. 177 and its cab, pictured below and on this page are now for sale. .

14th May

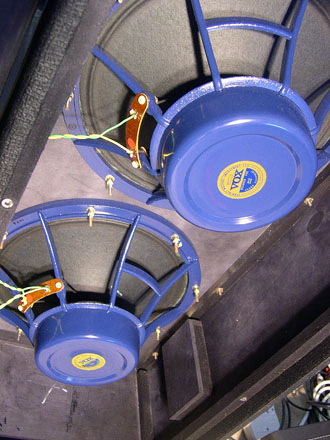

New pictures of serial number 177 and its cab posted here.

Further pics of serial number 1111 now registered here.

A new page begun on The magazine, which became "Beat Instrumental" in late 1964, was aimed principally at musicians and bands and became the only publication in which Vox regularly advertised.

7th May

Recently sold on ebay, serial number 1111. Further pics posted here.

16th April

The Animals on stage in Copenhagen, 1st January 1966 - picture from the wonderful Getty Images archive (photographer: Jan Persson). The AC100 cab belongs however to The Tielman Brothers, whose drum-kit is visible far left.

28th March

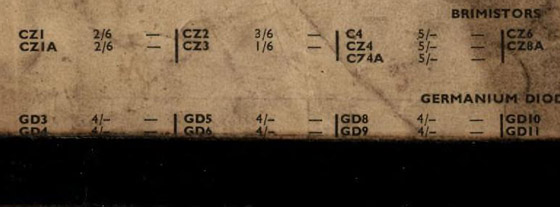

A detail from the Brimar pricelist of 1966, showing the line for the CZ4 brimistor (as used in the AC100 Mark 2): 5/- (five shillings) in old money, equivalent to around £4 today. The list is available here.

27th March

A wiring schema for the AC100 SDL cab . The intro. to .

The Byrds live on stage at a CBS Sales Conference on 5th July 1965, shortly after "Tambourine Man" went to number one in the U.S. All three guitarists are plugged in. The AC100s must, at this date, be cathode biased (AC80/100s). This is the earliest dateable picture that has come to light so far of an American band using, on stage in the USA, AC100 SDLs that did not belong to the Beatles or any other English band.

The equipment in the shot of the Byrds above was also used on that day by Paul Revere and the Raiders - see the pic. on the VoxShowroom site (though the amps are not AC100 Mark 2s as implied there). At a concert in Phoenix in 1965, date unknown, the Byrds had just the AC50 and two Foundation cabs - see this page.

As a side note, the only UK bands pictured with AC100 SDLs on stage in 1964 are the Beatles (of course), the Stones, Kinks and Yardbirds. The two last probably used the same amps.

A great shot from Getty Images of Mick Jagger leaning against the Stones' early AC100 SDL on stage at Olympia, Paris, 20th October 1964. The band had the amp in Belgium a few days earlier, but it is not seen on stage again after Paris.

Stones playing at the Amerikaans Theatre in Brussels on 18th October 1964. Photo by Hermann Selleslags.

13th March

Further pics of an early "100W Amplifier" added here.

12th March

A new page on the .

7th March

Images of Jennings J100 (fully solid state) serial no. 1319 .

2nd March

Advert from the issue of "Beat Monthly" (forerunner of "Beat Instrumental") for August 1963 - the first advert for the Foundation Bass cabinet. A further ad (of different design) featured in the November issue. See the for pictures of surviving examples of the cab.

Note the mention of "separate amplifier cabinet provides a total output of 50 watts undistorted", implying that the AC50 was a reality in some form (perhaps close to being ready) in August. However, the Beatles, who were usually first in line for new amps, did not get theirs until late December. We do not know, at present, what went on in the intervening months. It may be, though, that the design and testing process was a particular long one. An advert from January 1964 gives dimensions for the amp that are different from those of production amps.

1st March

This well-known image - very probably illustrating AC100 serial number 225, registered on this page - appears in the issue of "Beat Instrumental" magazine for March 1965, perhaps for the first time. If anyone knows of an earlier, dated, instance in a *British* source, do let me know. As it is, March 1965 accords well with the new stream of AC100s starting from the Burndept factory in Erith - a concerted promotional push. Prior to March 1965, the amps had been produced under contract for Vox by Westrex in North London.

The US Vox flyer, "King of the Beat", which contains a copy of this image of the AC100, was issued in 1965, not late 1964 as is said in some printed sources.

£252 in 1965 equates to around £4,500 in today's money ($6,200).

28th February

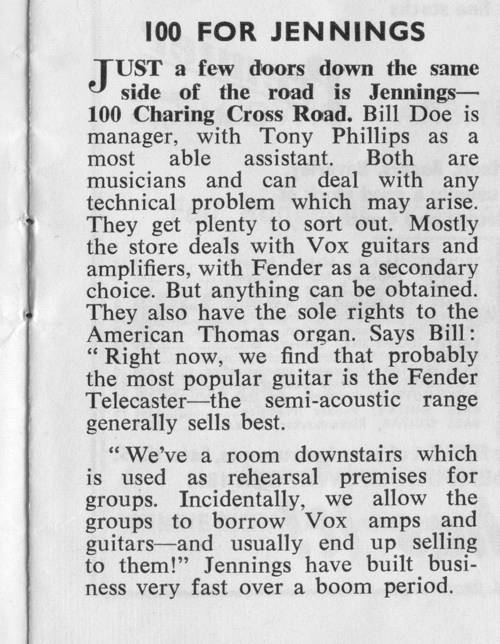

Pictured above, 100 Charing Cross Road, the Jennings shop (first set up in 1950 as the "London Accordion Centre"). Image and text from a late November issue of "Beat Instrumental" magazine, 1964. The premises were taken over by Macari's Musical Instruments when Vox folded in 1967, a natural progression, as Larry Macari had worked there (from 1956) as a salesman, and had co-run the shop for a time with Paul Butchard. In 1958 (not 1963/1964 as some sources say), however, Larry left to form "Macari's Musical Instruments" at 22 Denmark Street with brother Joe.

From 1963-1964 Jennings had another concern in Soho - "The Laboratory" - on New Compton Street, a sort of showroom and workshop, in which Gary Hurst of Tonebender fame worked for a time. See this wonderful thread (with its sometimes unreconciliable reminiscences). Later (c. 1968) this building became the outlet for Cliff Cooper's Orange Amps - a colour pic. is posted here.

Shortly after the formation of the Orange Amps ("Orange Music"), Peter Green and Fleetwood Mac went over from using their thin-edged Vox AC80/100 and twin T60 cabs - - to pre-production Orange equipment.

PETER GREEN

A recollection kindly sent in by Col Freeman

"Peter started off as a bass player, but had gone on to guitar full-time long before Fleetwood Mac. He was the replacement guitarist for Clapton in John Mayall's Bluesbreakers, (saw him many times in that band too - and saw Clapton with them), and used the AC100 rig with Mayall too. He left Mayall to form his own band, taking the bass player, John McVie, and the drummer Mick Fleetwood with him. The band was originally called Peter Green's Fleetwood Mac, and was what we'd call a progressive Blues Band. After Peter became mentally ill, (one of Rock's greatest tragedies), Fleetwood and McVie soldiered on, eventually emerging as the famous pop/rock band we know today. Needless to say, these are only the bare bones of the story."

"I saw the early band play in many venues, mainly colleges in the London area, and in particular at the legendary Marquee Club in Wardour St. They were dynamite, and would chuck in a few rock 'n' roll numbers as an encore (I particularly remember Eddie Cochran's 'Something Else'); some of the most powerful and moving rock I've ever heard. They were banned from the Marquee after the slide player, Jeremy Spencer, came on doing an alleged impersonation of the pop singer Cliff R, with a large dildo sticking out of his trousers! I was present at this hilarious spectacle."

"I have been a Recording Engineer most of my life and in the late 60's was working at Decca Studios West Hampstead. It was there that I finally met Peter, after having heard him perform so many times, and there that he let me have a go on his Les Paul, plugged in to the Vox stack, whilst he politely listened. Nervous? Hell yeah! The guitar had the thickest neck I've ever felt on a Gibson, 'like a cricket bat' I thought at the time!"

ALAN BILLINGTON, manager of Tom Jennings' "London Accordion Centre" (from 1950 - c. 1956).

A side note: googling shows that there's a picture of Alan playing the accordion at an event in Welling in Kent in 1937. Welling was presumably where he was from, as he's listed at an address in the town as a dealer of accordions/jazz instruments in issues of "Crescendo", a jazz magazine, from the early sixties. Presumably he decided to go solo when the "London Accordion Centre" became the "Jennings Shop".

See for instance this page (the image of the magazine page can be viewed large), and the "supersound" site.

14th February


Further images of an amp with a serial number in the 1800s added here.

7th February

Further images of serial number 1638, a Triumph-made amp signed off by "Graham" added here and on the Triumph-made page.

7th February

Serial number 1638, currently in Spain registered here.

27th January

Thanks to members of the BeatGear Cavern, the list of US Vox dealers has been corrected and augmented. See this thread. You will need to be a member of the BeatGear Cavern (free) to view the thread, however.

24th January

Pics of the chassis of an amp with a serial number in the 1800s added on this page.Thanks to Francesco for the pictures.

23rd January

Page on Thanks to Jan for pictures of serial no. 1015.

22nd January

The list of Vox dealers in the USA now expanded Thanks to Charles Forssi for details on New York City and Florida. The advert for California, later to become a standard format, is said to have been issued on 23rd December 1964.

17th January

The page on .

11th January

A Brimar booklet .

9th January

New page on .

2nd January

Serial number 2089 added on this page.

Some new Foundation Bass cabs .

There are now separate pages for the .

1st January

New page on Vox and Woden Transformers .

The page on AC80/100s with .

The page on AC80/100s made in .
